An interface that represents an abstract linear equation solver. More...

#include <LinearEquationSolver.h>

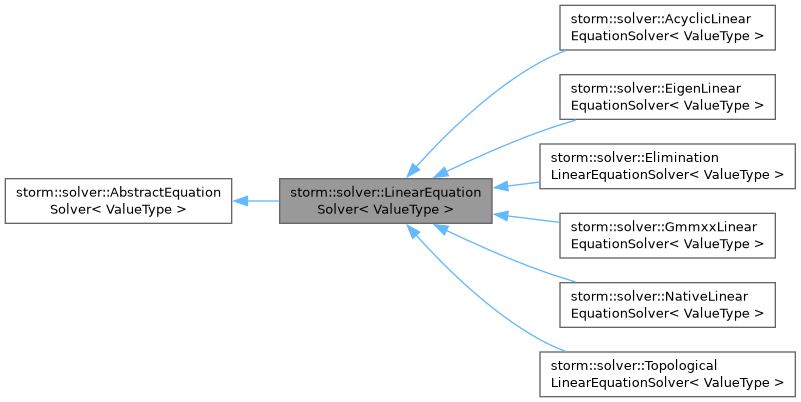

Inheritance diagram for storm::solver::LinearEquationSolver< ValueType >:

[legend]

Collaboration diagram for storm::solver::LinearEquationSolver< ValueType >:

Public Member Functions
	LinearEquationSolver ()
virtual	~LinearEquationSolver ()
virtual void	setMatrix (storm::storage::SparseMatrix< ValueType > const &A)=0
virtual void	setMatrix (storm::storage::SparseMatrix< ValueType > &&A)=0
bool	solveEquations (Environment const &env, std::vector< ValueType > &x, std::vector< ValueType > const &b) const
	If the solver expects the equation system format, it solves Ax = b.
virtual LinearEquationSolverProblemFormat	getEquationProblemFormat (Environment const &env) const =0
	Retrieves the format in which this solver expects to solve equations.
virtual LinearEquationSolverRequirements	getRequirements (Environment const &env) const
	Retrieves the requirements of the solver under the current settings.
void	setCachingEnabled (bool value) const
	Sets whether some of the generated data during solver calls should be cached.
bool	isCachingEnabled () const
	Retrieves whether some of the generated data during solver calls should be cached.
virtual void	clearCache () const
Public Member Functions inherited from storm::solver::AbstractEquationSolver< ValueType >
	AbstractEquationSolver ()
void	setShowProgress (bool verbose, uint64_t delay=5)
	Configures whether this solver should show progress during iterative solving.
void	setTerminationCondition (std::unique_ptr< TerminationCondition< ValueType > > terminationCondition)
	Sets a custom termination condition that is used together with the regular termination condition of the solver.
void	resetTerminationCondition ()
	Removes a previously set custom termination condition.
bool	hasCustomTerminationCondition () const
	Retrieves whether a custom termination condition has been set.
bool	terminateNow (std::vector< ValueType > const &values, SolverGuarantee const &guarantee) const
	Checks whether the solver can terminate wrt.
bool	hasRelevantValues () const
	Retrieves whether this solver has particularly relevant values.
storm::storage::BitVector const &	getRelevantValues () const
	Retrieves the relevant values (if there are any).
boost::optional< storm::storage::BitVector > const &	getOptionalRelevantValues () const
void	setRelevantValues (storm::storage::BitVector &&valuesOfInterest)
	Sets the relevant values.
void	clearRelevantValues ()
	Removes the values of interest (if there were any).
bool	hasLowerBound (BoundType const &type=BoundType::Any) const
	Retrieves whether this solver has a lower bound.
bool	hasUpperBound (BoundType const &type=BoundType::Any) const
	Retrieves whether this solver has an upper bound.
void	setLowerBound (ValueType const &value)
	Sets a lower bound for the solution that can potentially be used by the solver.
void	setUpperBound (ValueType const &value)
	Sets an upper bound for the solution that can potentially be used by the solver.
void	setBounds (ValueType const &lower, ValueType const &upper)
	Sets bounds for the solution that can potentially be used by the solver.
ValueType const &	getLowerBound () const
	Retrieves the lower bound (if there is any).
ValueType const &	getUpperBound () const
	Retrieves the upper bound (if there is any).
std::vector< ValueType > const &	getLowerBounds () const
	Retrieves a vector containing the lower bounds (if there are any).
std::vector< ValueType > const &	getUpperBounds () const
	Retrieves a vector containing the upper bounds (if there are any).
void	setLowerBounds (std::vector< ValueType > const &values)
	Sets lower bounds for the solution that can potentially be used by the solver.
void	setUpperBounds (std::vector< ValueType > const &values)
	Sets upper bounds for the solution that can potentially be used by the solver.
void	setBoundsFromOtherSolver (AbstractEquationSolver< ValueType > const &other)
void	clearBounds ()
	Removes all specified solution bounds.
bool	hasSolutionLowerBounds () const
	Retrieves whether the last call to this solver computed a sound lower resp.
bool	hasSolutionUpperBounds () const
bool	hasExactSolutionBounds () const
	Retrieves whether the bounds computed by the last call to this solver coincide.
std::vector< ValueType > const &	getSolutionLowerBounds () const
	Retrieves sound bounds on the solution that the last call to this solver computed.
std::vector< ValueType > const &	getSolutionUpperBounds () const
SolutionBounds< ValueType > const &	getSolutionBounds () const
	Retrieves both bounds at once, either of which may be unset.
bool	isShowProgressSet () const
	Retrieves whether progress is to be shown.
uint64_t	getShowProgressDelay () const
	Retrieves the delay between progress emissions.
void	startMeasureProgress (uint64_t startingIteration=0) const
	Starts to measure progress.
void	showProgressIterative (uint64_t iterations, boost::optional< uint64_t > const &bound=boost::none) const
	Shows progress if this solver is asked to do so.

Protected Member Functions
virtual bool	internalSolveEquations (Environment const &env, std::vector< ValueType > &x, std::vector< ValueType > const &b) const =0
Protected Member Functions inherited from storm::solver::AbstractEquationSolver< ValueType >
TerminationCondition< ValueType > const &	getTerminationCondition () const
	Retrieves the custom termination condition (if any was set).
std::unique_ptr< TerminationCondition< ValueType > > const &	getTerminationConditionPointer () const
void	setSolutionBounds (SolutionBounds< ValueType > bounds) const
	Stores sound bounds on the solution that were obtained while solving.
void	setSolutionBoundsExact (std::vector< ValueType > const &x) const
	Reports the given solution as an exact one, i.e.
void	finalizeSolutionBounds (std::vector< ValueType > const &x) const
	Settles the bounds to report once solving is over: the ones handed to this solver beforehand are folded into the ones it computed itself, and both are widened until they enclose the solution that is handed back.
void	clearSolutionBounds () const
	Discards any bounds on the solution obtained by a previous call.
void	setSolutionBoundsFromPrecision (std::vector< ValueType > const &x, ValueType const &precision, bool relative) const
	Turns a precision that the solving procedure is known to have achieved into sound bounds on the solution, i.e.
void	createUpperBoundsVector (std::vector< ValueType > &upperBoundsVector) const
void	createLowerBoundsVector (std::vector< ValueType > &lowerBoundsVector) const
void	reportStatus (SolverStatus status, boost::optional< uint64_t > const &iterations=boost::none) const
	Report the current status of the solver.
SolverStatus	updateStatus (SolverStatus status, std::vector< ValueType > const &x, SolverGuarantee const &guarantee, uint64_t iterations, uint64_t maximalNumberOfIterations) const
	Update the status of the solver with respect to convergence, early termination, abortion, etc.

Protected Attributes
std::unique_ptr< std::vector< ValueType > >	cachedRowVector
Protected Attributes inherited from storm::solver::AbstractEquationSolver< ValueType >
std::unique_ptr< TerminationCondition< ValueType > >	terminationCondition
boost::optional< storm::storage::BitVector >	relevantValues
boost::optional< ValueType >	lowerBound
boost::optional< ValueType >	upperBound
boost::optional< std::vector< ValueType > >	lowerBounds
boost::optional< std::vector< ValueType > >	upperBounds

Additional Inherited Members
Public Types inherited from storm::solver::AbstractEquationSolver< ValueType >
enum	BoundType

Detailed Description

template<class ValueType>
class storm::solver::LinearEquationSolver< ValueType >

An interface that represents an abstract linear equation solver.

Definition at line 24 of file LinearEquationSolver.h.

Constructor & Destructor Documentation

◆ LinearEquationSolver()

template<typename ValueType>

storm::solver::LinearEquationSolver< ValueType >::LinearEquationSolver ( )

Definition at line 21 of file LinearEquationSolver.cpp.

◆ ~LinearEquationSolver()

template<class ValueType>

virtual storm::solver::LinearEquationSolver< ValueType >::~LinearEquationSolver ( )

inlinevirtual

Definition at line 28 of file LinearEquationSolver.h.

Member Function Documentation

◆ clearCache()

template<typename ValueType>

void storm::solver::LinearEquationSolver< ValueType >::clearCache ( ) const

virtual

Reimplemented in storm::solver::AcyclicLinearEquationSolver< ValueType >, storm::solver::GmmxxLinearEquationSolver< ValueType >, storm::solver::NativeLinearEquationSolver< ValueType >, and storm::solver::TopologicalLinearEquationSolver< ValueType >.

Definition at line 56 of file LinearEquationSolver.cpp.

◆ getEquationProblemFormat()

template<class ValueType>

virtual LinearEquationSolverProblemFormat storm::solver::LinearEquationSolver< ValueType >::getEquationProblemFormat ( Environment const & env ) const

pure virtual

Retrieves the format in which this solver expects to solve equations.

If the solver expects the equation system format, it solves Ax = b. If it it expects a fixed point format, it solves Ax + b = x.

Implemented in storm::solver::AcyclicLinearEquationSolver< ValueType >, storm::solver::EigenLinearEquationSolver< ValueType >, storm::solver::EliminationLinearEquationSolver< ValueType >, storm::solver::GmmxxLinearEquationSolver< ValueType >, storm::solver::NativeLinearEquationSolver< ValueType >, and storm::solver::TopologicalLinearEquationSolver< ValueType >.

◆ getRequirements()

template<typename ValueType>

LinearEquationSolverRequirements storm::solver::LinearEquationSolver< ValueType >::getRequirements ( Environment const & env ) const

virtual

Retrieves the requirements of the solver under the current settings.

Note that these requirements only apply to solving linear equations and not to the matrix vector multiplications.

Reimplemented in storm::solver::AcyclicLinearEquationSolver< ValueType >, storm::solver::NativeLinearEquationSolver< ValueType >, and storm::solver::TopologicalLinearEquationSolver< ValueType >.

Definition at line 37 of file LinearEquationSolver.cpp.

◆ internalSolveEquations()

template<class ValueType>

virtual bool storm::solver::LinearEquationSolver< ValueType >::internalSolveEquations	(	Environment const &	env,
		std::vector< ValueType > &	x,
		std::vector< ValueType > const &	b ) const

protectedpure virtual

Implemented in storm::solver::AcyclicLinearEquationSolver< ValueType >, storm::solver::EigenLinearEquationSolver< ValueType >, storm::solver::EliminationLinearEquationSolver< ValueType >, storm::solver::GmmxxLinearEquationSolver< ValueType >, storm::solver::NativeLinearEquationSolver< ValueType >, and storm::solver::TopologicalLinearEquationSolver< ValueType >.

◆ isCachingEnabled()

template<typename ValueType>

bool storm::solver::LinearEquationSolver< ValueType >::isCachingEnabled ( ) const

Retrieves whether some of the generated data during solver calls should be cached.

Definition at line 51 of file LinearEquationSolver.cpp.

◆ setCachingEnabled()

template<typename ValueType>

void storm::solver::LinearEquationSolver< ValueType >::setCachingEnabled ( bool value ) const

Sets whether some of the generated data during solver calls should be cached.

This possibly increases the runtime of subsequent calls but also increases memory consumption.

Definition at line 42 of file LinearEquationSolver.cpp.

◆ setMatrix() [1/2]

template<class ValueType>

virtual void storm::solver::LinearEquationSolver< ValueType >::setMatrix ( storm::storage::SparseMatrix< ValueType > && A )

pure virtual

Implemented in storm::solver::AcyclicLinearEquationSolver< ValueType >, storm::solver::EigenLinearEquationSolver< ValueType >, storm::solver::EliminationLinearEquationSolver< ValueType >, storm::solver::GmmxxLinearEquationSolver< ValueType >, storm::solver::NativeLinearEquationSolver< ValueType >, and storm::solver::TopologicalLinearEquationSolver< ValueType >.

◆ setMatrix() [2/2]

template<class ValueType>

virtual void storm::solver::LinearEquationSolver< ValueType >::setMatrix ( storm::storage::SparseMatrix< ValueType > const & A )

pure virtual

Implemented in storm::solver::AcyclicLinearEquationSolver< ValueType >, storm::solver::EigenLinearEquationSolver< ValueType >, storm::solver::EliminationLinearEquationSolver< ValueType >, storm::solver::GmmxxLinearEquationSolver< ValueType >, storm::solver::NativeLinearEquationSolver< ValueType >, and storm::solver::TopologicalLinearEquationSolver< ValueType >.

◆ solveEquations()

template<typename ValueType>

bool storm::solver::LinearEquationSolver< ValueType >::solveEquations	(	Environment const &	env,
		std::vector< ValueType > &	x,
		std::vector< ValueType > const &	b ) const

If the solver expects the equation system format, it solves Ax = b.

If it it expects a fixed point format, it solves Ax + b = x. In both versions, the matrix A is required to be square and the problem is required to have a unique solution. The solution will be written to the vector x. Note that the matrix A has to be given upon construction time of the solver object.

Parameters

x	The solution vector that has to be computed. Its length must be equal to the number of rows of A.
b	The vector b. Its length must be equal to the number of rows of A.

Returns: true

Definition at line 26 of file LinearEquationSolver.cpp.

Member Data Documentation

◆ cachedRowVector

template<class ValueType>

std::unique_ptr<std::vector<ValueType> > storm::solver::LinearEquationSolver< ValueType >::cachedRowVector

mutableprotected

Definition at line 80 of file LinearEquationSolver.h.

The documentation for this class was generated from the following files:

src/storm/solver/LinearEquationSolver.h
src/storm/solver/LinearEquationSolver.cpp
