Represents a model in the UMB format. More...

#include <UmbModel.h>

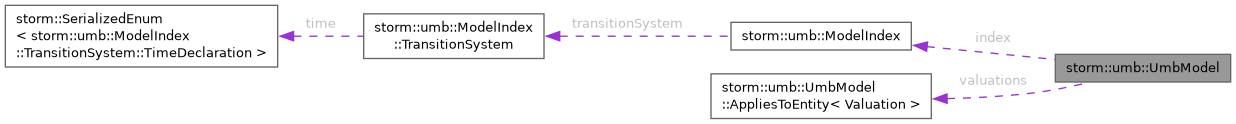

Collaboration diagram for storm::umb::UmbModel:

[legend]

Classes
struct	ActionLabels
struct	Observations
struct	AppliesToEntity
struct	AnnotationValues
struct	Valuation

Public Types
using	Annotation = std::map<std::string, AppliesToEntity<AnnotationValues>>
using	Valuations = AppliesToEntity<Valuation>

Public Member Functions
std::string	getShortModelInformation () const
	Retrieves a short string that can be used to refer to the model in user output.
std::string	getModelInformation () const
	Retrieves a string that describes the model in more detail.
storm::OptionalRef< Annotation >	annotation (std::string const &annotationType, bool createIfMissing=false)
	Gets the annotation data with the given annotation type.
storm::OptionalRef< Annotation const >	annotation (std::string const &annotationType) const
storm::OptionalRef< Annotation >	aps (bool createIfMissing=false)
storm::OptionalRef< Annotation const >	aps () const
storm::OptionalRef< Annotation >	rewards (bool createIfMissing=false)
storm::OptionalRef< Annotation const >	rewards () const
bool	validate (std::ostream &errors) const
	Validates the given UMB model and writes potential errors to the given output stream.
void	validateOrThrow () const
	Validates the UmbModel.
void	encodeRationals ()
	Encodes all rational values stored in the model into their UMB bit representation.
void	decodeRationals ()
	Decodes all rational values stored in the model from their UMB bit representation.

Public Attributes
ModelIndex	index
CSR	stateToChoices
TO1< uint32_t >	stateToPlayer
TO1< bool >	stateIsInitial
TO1< bool >	stateIsMarkovian
TO1< AnyValueType >	stateToExitRate
CSR	choiceToBranches
TO1< uint64_t >	branchToTarget
TO1< AnyValueType >	branchToProbability
std::optional< ActionLabels >	choiceActions
std::optional< ActionLabels >	branchActions
std::optional< Observations >	stateObservations
std::optional< Observations >	branchObservations
std::map< std::string, Annotation >	annotations
Valuations	valuations
std::map< std::filesystem::path, std::vector< char > >	nonStandardFiles

Static Public Attributes
static auto constexpr	FileNames

Detailed Description

Represents a model in the UMB format.

The data is stored in a way that closely reflects the file structure of the UMB format.

See also: https://pmc-tools.github.io/umb/spec

Note: We use reflexion to associate the data with the expected file names.

Definition at line 21 of file UmbModel.h.

Member Typedef Documentation

◆ Annotation

using storm::umb::UmbModel::Annotation = std::map<std::string, AppliesToEntity<AnnotationValues>>

Definition at line 66 of file UmbModel.h.

◆ Valuations

using storm::umb::UmbModel::Valuations = AppliesToEntity<Valuation>

Definition at line 76 of file UmbModel.h.

Member Function Documentation

◆ annotation() [1/2]

storm::OptionalRef< UmbModel::Annotation const > storm::umb::UmbModel::annotation ( std::string const & annotationType ) const

Definition at line 72 of file UmbModel.cpp.

◆ annotation() [2/2]

storm::OptionalRef< UmbModel::Annotation > storm::umb::UmbModel::annotation	(	std::string const &	annotationType,
		bool	createIfMissing = false )

Gets the annotation data with the given annotation type.

Definition at line 61 of file UmbModel.cpp.

◆ aps() [1/2]

storm::OptionalRef< UmbModel::Annotation const > storm::umb::UmbModel::aps ( ) const

Definition at line 84 of file UmbModel.cpp.

◆ aps() [2/2]

storm::OptionalRef< UmbModel::Annotation > storm::umb::UmbModel::aps ( bool createIfMissing = false )

Definition at line 80 of file UmbModel.cpp.

◆ decodeRationals()

void storm::umb::UmbModel::decodeRationals ( )

Decodes all rational values stored in the model from their UMB bit representation.

Definition at line 181 of file UmbModel.cpp.

◆ encodeRationals()

void storm::umb::UmbModel::encodeRationals ( )

Encodes all rational values stored in the model into their UMB bit representation.

Definition at line 104 of file UmbModel.cpp.

◆ getModelInformation()

std::string storm::umb::UmbModel::getModelInformation ( ) const

Retrieves a string that describes the model in more detail.

Definition at line 24 of file UmbModel.cpp.

◆ getShortModelInformation()

std::string storm::umb::UmbModel::getShortModelInformation ( ) const

Retrieves a short string that can be used to refer to the model in user output.

Definition at line 11 of file UmbModel.cpp.

◆ rewards() [1/2]

storm::OptionalRef< UmbModel::Annotation const > storm::umb::UmbModel::rewards ( ) const

Definition at line 92 of file UmbModel.cpp.

◆ rewards() [2/2]

storm::OptionalRef< UmbModel::Annotation > storm::umb::UmbModel::rewards ( bool createIfMissing = false )

Definition at line 88 of file UmbModel.cpp.

◆ validate()

bool storm::umb::UmbModel::validate ( std::ostream & errors ) const

Validates the given UMB model and writes potential errors to the given output stream.

Returns: true if the UMB model is valid.

Definition at line 96 of file UmbModel.cpp.

◆ validateOrThrow()

void storm::umb::UmbModel::validateOrThrow ( ) const

Validates the UmbModel.

If it is invalid, an exception is thrown.

Definition at line 100 of file UmbModel.cpp.

Member Data Documentation

◆ annotations

std::map<std::string, Annotation> storm::umb::UmbModel::annotations

Definition at line 67 of file UmbModel.h.

◆ branchActions

std::optional<ActionLabels> storm::umb::UmbModel::branchActions

Definition at line 43 of file UmbModel.h.

◆ branchObservations

std::optional<Observations> storm::umb::UmbModel::branchObservations

Definition at line 51 of file UmbModel.h.

◆ branchToProbability

TO1<AnyValueType> storm::umb::UmbModel::branchToProbability

Definition at line 35 of file UmbModel.h.

◆ branchToTarget

TO1<uint64_t> storm::umb::UmbModel::branchToTarget

Definition at line 34 of file UmbModel.h.

◆ choiceActions

std::optional<ActionLabels> storm::umb::UmbModel::choiceActions

Definition at line 43 of file UmbModel.h.

◆ choiceToBranches

CSR storm::umb::UmbModel::choiceToBranches

Definition at line 32 of file UmbModel.h.

◆ FileNames

auto constexpr storm::umb::UmbModel::FileNames

staticconstexpr

Initial value:

= {"index.json",
                                       "state-to-choices.bin",
                                       "state-to-player.bin",
                                       "state-is-initial.bin",
                                       "state-is-markovian.bin",
                                       "state-to-exit-rate.bin",
                                       "choice-to-branches.bin",
                                       "branch-to-target.bin",
                                       "branch-to-probability.bin",
                                       "actions/choices/",
                                       "actions/branches/",
                                       "observations/states/",
                                       "observations/branches/",
                                       "annotations/",
                                       "valuations/",
                                       ""}

Definition at line 83 of file UmbModel.h.

◆ index

ModelIndex storm::umb::UmbModel::index

Definition at line 24 of file UmbModel.h.

◆ nonStandardFiles

std::map<std::filesystem::path, std::vector<char> > storm::umb::UmbModel::nonStandardFiles

Definition at line 81 of file UmbModel.h.

◆ stateIsInitial

TO1<bool> storm::umb::UmbModel::stateIsInitial

Definition at line 28 of file UmbModel.h.

◆ stateIsMarkovian

TO1<bool> storm::umb::UmbModel::stateIsMarkovian

Definition at line 29 of file UmbModel.h.

◆ stateObservations

std::optional<Observations> storm::umb::UmbModel::stateObservations

Definition at line 51 of file UmbModel.h.

◆ stateToChoices

CSR storm::umb::UmbModel::stateToChoices

Definition at line 26 of file UmbModel.h.

◆ stateToExitRate

TO1<AnyValueType> storm::umb::UmbModel::stateToExitRate

Definition at line 30 of file UmbModel.h.

◆ stateToPlayer

TO1<uint32_t> storm::umb::UmbModel::stateToPlayer

Definition at line 27 of file UmbModel.h.

◆ valuations

Valuations storm::umb::UmbModel::valuations

Definition at line 77 of file UmbModel.h.

The documentation for this class was generated from the following files:

src/storm/storage/umb/model/UmbModel.h
src/storm/storage/umb/model/UmbModel.cpp
